HooCrawler 48P 29g Ultra-Light Portal Transmission Carbon Tiny Gearbox for 1/10 LCG Chassis Comp Builds Rigs

Feature:

• Tiny Transmission for portal axles.

• Laser cut carbon fiber case.

• Hardened chromoly gears.

• Grade 5 Titanium 5mm output shaft.

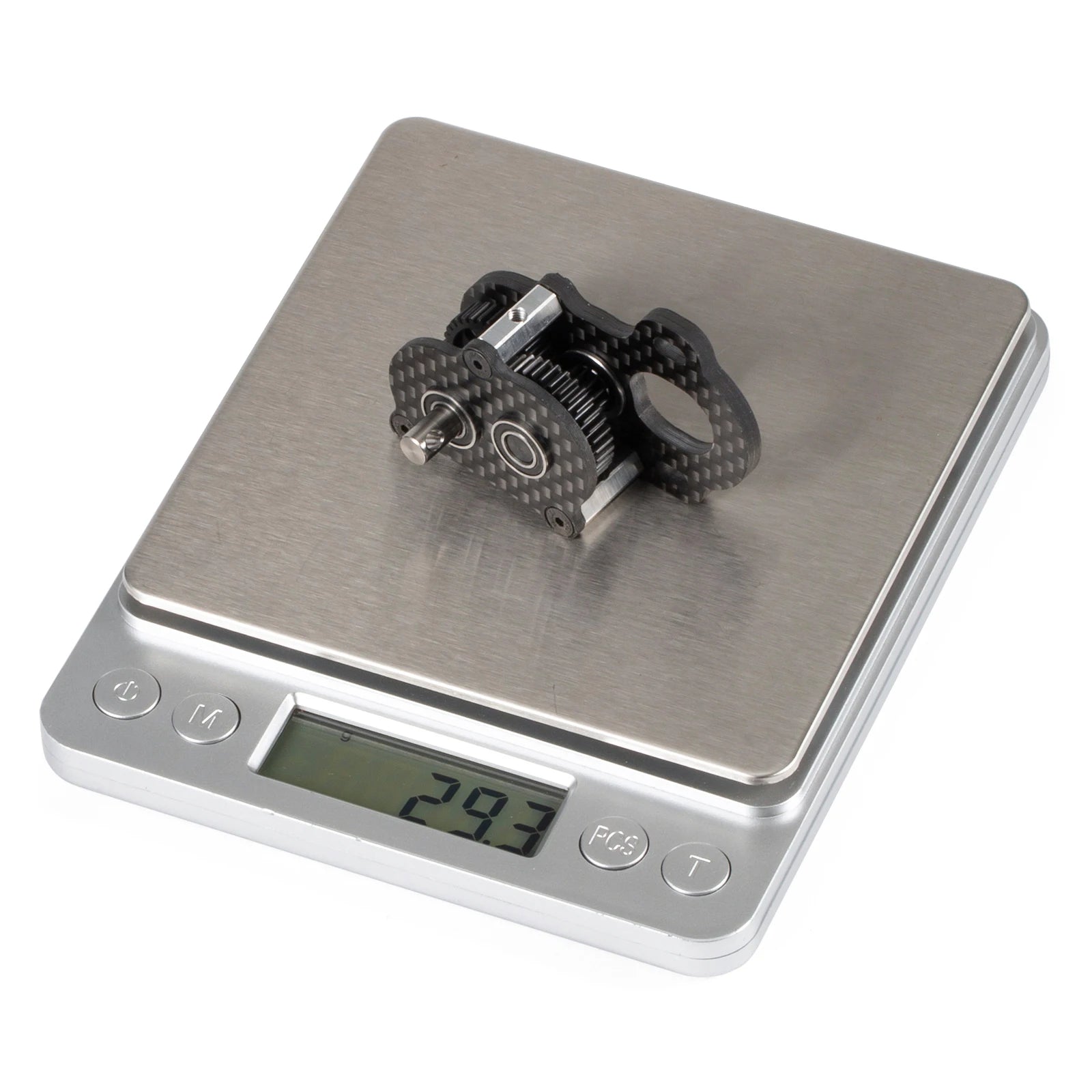

• Only 29.3g, Ultra-Small and Ultra-Light. Ultra low center of gravity (LCG).

• Low noise and ultra smooth.

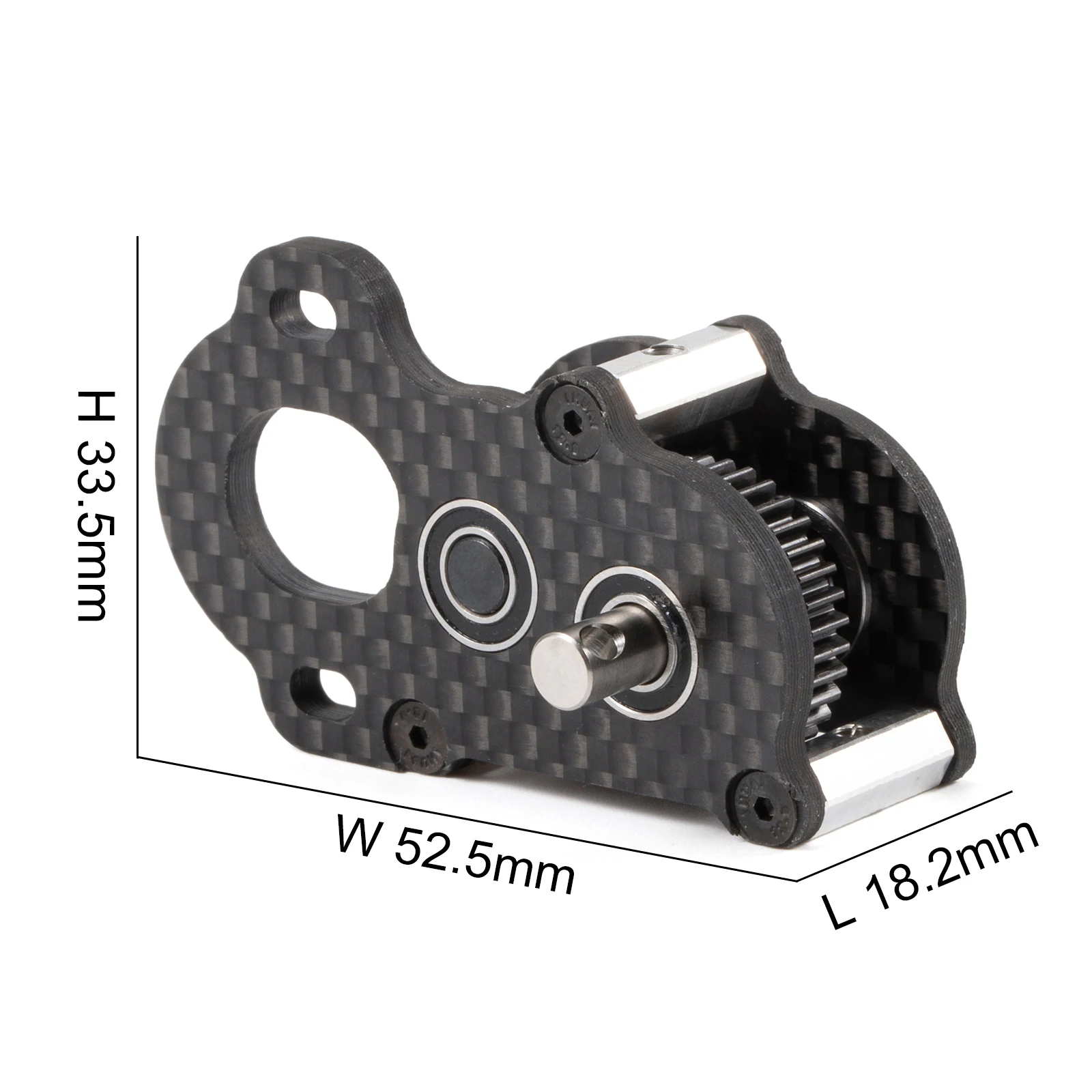

• Dimensions: 52.5mm W x 33.5mm H x 18.2mm L (not counting output shaft)

• Motor bolt holes 25mm on center. Skid plate mounting holes 27.5mm on center (M3 threaded holes).

• Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.

• 36T Spur Gear (48 pitch), 3:1 Low gear ratio.

• Fits 48 Pitch pinions from 11T to 18T (Not Included)



Gear Ratio:

11T pinion: 9.8

12T pinion: 9.0

13T pinion: 8.3

14T pinion: 7.7

15T pinion: 7.2

16T pinion: 6.75

17T pinion: 6.35

18T pinion: 6.0

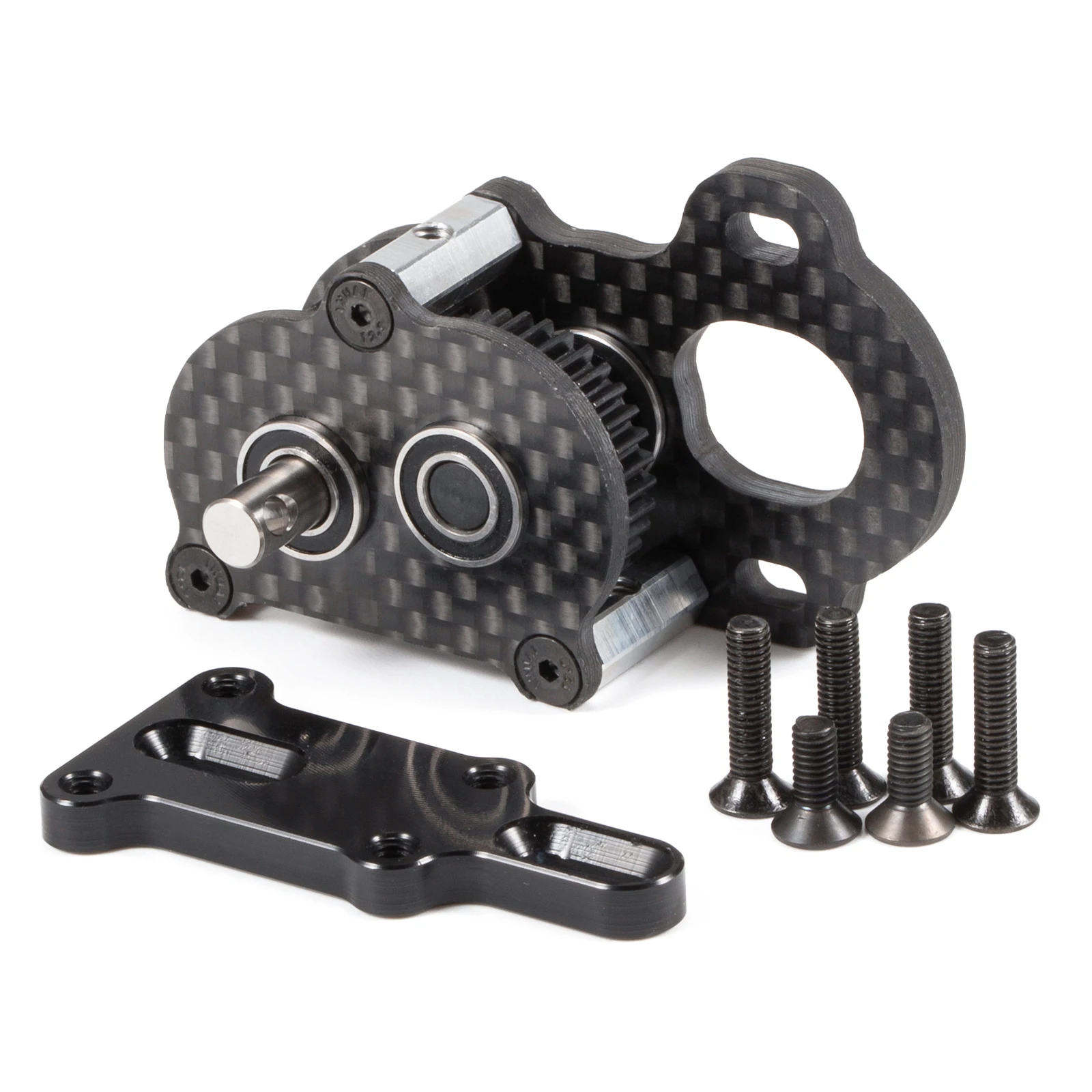

Included:

1x Tiny Transmission

1x Slidable Shim

1x Hardware Set
